Narrow Aisle Forklifts: Best Picks for Tight Warehouse Spaces
Besides just using organized shelving, managing a high-density warehouse environment also demands employing the right specialized equipment to navigate restricted pathways without compromising safety or throughput where comes the best narrow aisle forklifts to the industry.
As the global supply chains trend toward maximizing every square inch of vertical and horizontal floor space, narrow aisle forklifts have risen from being niche tools to becoming essential assets. These machines are specifically designed to be used in aisles as narrow as 5.5 to 10.5 feet—spaces where conventional counterbalance forklifts simply cannot turn.
American Forklifts is aware that a direct correlation exists between your warehouse efficiency and your selection of material handling equipment. With narrow aisle forklifts added to your fleet, you can get back up to 60% of your workspace.
If you are after an extreme reach of a turret truck or the agility of an articulated one, determining the “best pick” should be done considering your racking and load requirements.
This article delves into the narrow aisle solutions that can double your productivity while still securing 100% human-centric safety standards.
Why Narrow Aisle Forklifts are Essential for Modern Warehousing
Common warehouse designs usually dedicate 12 or more feet to forklift aisles, thus wasting a great deal of storage potential. However, the rise of e-commerce and the increase in real estate costs have made the use of narrow aisle warehouses more imperative than ever before.
With narrow aisle forklifts, one can put tighter rack rows leading to direct increase in pallet positions within the same building area. The specialized lifts have the main strength of being capable of maintaining high lift capacities even while operating in very confined spaces.
The standard trucks need a wide “swing” to put down the load, whereas narrow aisle ones achieve this by using proximity articulating masts or reach mechanisms to go to the racks laterally. This design principle drastically cuts the “dead space” required for the vehicle to move around.
- Maximize Storage Density: You can store 50% more inventory if you reduce the aisle width from the standard 12 feet down to 6 feet or less.
- Enhanced Vertical Reach: Many narrow aisle forklifts achieve engineered stability at heights beyond 40 feet, thus enabling you to make use of your entire facility vertical cube.
- Superior Maneuverability: 180-degree turning turret head and articulated steering features precisely control movements even in the most confined spaces.
Top 3 Picks: The Best Narrow Aisle Forklifts for Tight Spaces
Finding the proper piece of equipment for your specific operation first requires knowing the mechanical features of the machine. Below are the top-line classes of narrow aisle forklifts that americaforklifts.org has to offer, and each class specializes in different warehouse problems.
1. Electric Reach Trucks: The High-Density Workhorse
Electric reach truck is a class II narrow aisle forklift commonly known as a forklift with outriggers. One of the sides of the mast is able to “reach” forward into the rack while the body of the truck is still standing in the aisle.
- Compact Footprint: Reach trucks are generally capable of operating in aisles as narrow as 8.5 to 9.5 feet.
- High-Lift Performance: Products like the BR20SP-7 Plus from us give the ability to lift weights of up to 4,000 lbs and climb to the height of over 30 feet.
- Operator Ergonomics: Sideward-facing seating provides more operator’s safety when traveling in the opposite direction or lifting at high altitudes.
2. Turret Trucks (VNA Trucks) for Maximum Space Gains
Knowing that every inch matters, Very Narrow Aisle (VNA) Turret Trucks are the perfect machines for the job. These forklifts come with non-turning characteristics, but forks can rotate 180 degrees to enable pallet picking from either side of the truck.
- Extreme Aisle Reduction: These trucks can be used in aisles that are only 5.5 feet wide.
- Diagonal Movement: Advanced VNA trucks can lift and travel simultaneously, significantly reducing cycle times.
- Guidance Systems: Many turret trucks work with wire or rail guidance to make sure that the truck is always in the center of the aisle, thus, avoiding rack damage in extremely small spaces.
3. Articulated Forklifts: The Versatile Hybrid
An articulated forklift such as Aisle Master or Artix brings together features of a counterbalance and a VNA truck. The front end of the forklift “turns into” the rack while the rear side of the aisle remains straight.
- Indoor-Outdoor Versatility: Unlike reach trucks, articulated models can often unload trailers in the yard and move directly into narrow indoor aisles.
- No Guidance Needed: These units do not require expensive floor-embedded wire guidance or rails to operate in 6-foot aisles.
- Dock-to-Stock Efficiency: Eliminate “double handling” by using one machine to move a load from the shipping dock all the way to a high-level rack.

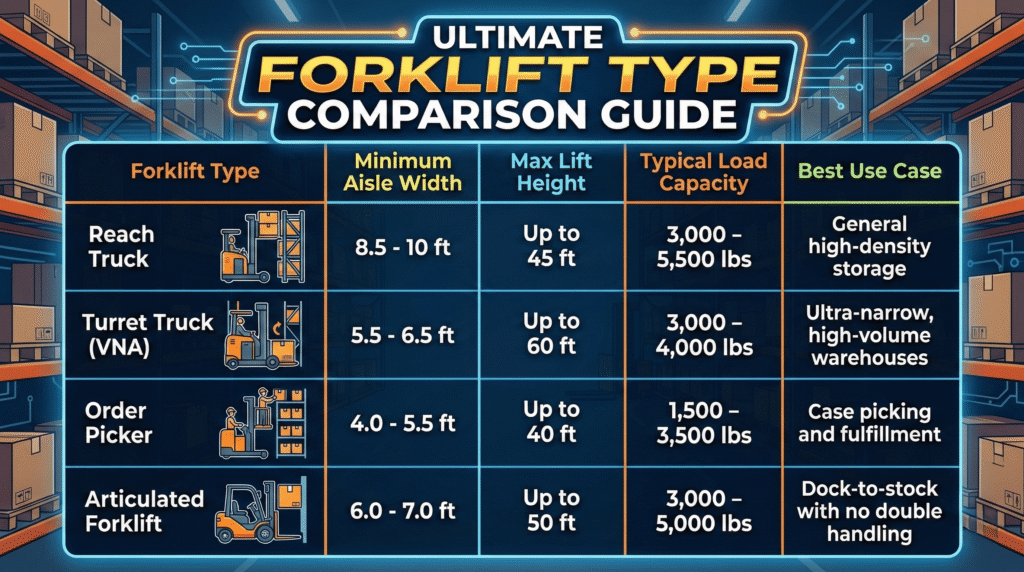

Technical Specifications Comparison Table
Choosing which narrow aisle forklift is most suitable for your operation is greatly facilitated by reviewing a summary of the major specifications of the popular forklift types presented below.
Table: Forklift Types
| Forklift Type | Minimum Aisle Width | Max Lift Height | Typical Load Capacity | Best Use Case |
| Reach Truck | 8.5 – 10 ft | Up to 45 ft | 3,000 – 5,500 lbs | General high-density storage |
| Turret Truck (VNA) | 5.5 – 6.5 ft | Up to 60 ft | 3,000 – 4,000 lbs | Ultra-narrow, high-volume warehouses |
| Order Picker | 4.0 – 5.5 ft | Up to 40 ft | 1,500 – 3,500 lbs | Case picking and fulfillment |
| Articulated Forklift | 6.0 – 7.0 ft | Up to 50 ft | 3,000 – 5,000 lbs | Dock-to-stock with no double handling |
Advanced Safety and Technology Features
If you operate in tight warehouses, safety must be severely emphasized. The smart technologies protect the operator as well as the inventory in narrow aisle forklifts from American Forklifts.
Examples of these technologies include Guardian Stability System (GSS) and Operator Sensing System (OSS), which are incorporated into a lot of our new generation models.
These advanced control systems interpret the positioning and movement limits of the vehicle taking into consideration the mast height, load weight, and travel speed, etc. so as to prevent instability if the vehicle is turning too fast carrying a high load, and hence it slows down automatically.
Also, the shift to Lithium-Ion battery technology means that these electric machines can operate for several shifts with “opportunity charging”, thereby doing away with the cumbersome battery-changing rooms.
- Collision Avoidance: Laser and radar sensors indicate to the drivers when there are people or objects occluded by the forklifts’ structural elements.
- Precision Controls: Fingertip hydraulic controls allow for minute adjustments when placing pallets 40 feet in the air.
- Superior Visibility: Redesigned overhead guards and lowered dashboards provide a clear line of sight to the forks at all times.
Maintenance Tips for Narrow Aisle Forklift Longevity
In order for highly specialized narrow aisle forklifts to function properly, a steady servicing schedule must be observed, which ensures peak performance.
Since most of the units in this type of forklifts are electric, battery care should be the primary focus to prolong the life of the machine.
- Regular Battery Watering: Make sure to check the water levels weekly on lead-acid models to avoid cell damage.
- Mast Lubrication: Since the aim is to achieve maximum lift height, mast lubing and keeping the rollers lubricated are two measures that prevent friction and help the uplifts operate smoothly.
- Floor Condition Monitoring: VNA trucks, especially turret trucks, require exceptionally flat floors. Regularly inspect your warehouse floor for cracks or uneven surfaces that could affect the truck’s stability.
FAQs: Narrow Aisle Forklift Questions
What is the difference between a narrow aisle and a very narrow aisle (VNA) forklift?
Narrow aisle (NA) and Very Narrow Aisle (VNA) forklifts are simply categorized based on aisle widths that they operate in. NA forklifts, such as reach trucks, are meant for aisles between about 8.5 and 10.5 feet. VNA are a step further down and can operate in aisles as small as 5.5 feet.
Usually, VNA forklifts consist of turret trucks or order pickers that can handle pallets on either side without having to turn the chassis to access the rack.
Can a reach truck be used outside?
Generally, no. Reach trucks are designed for indoor use on smooth, level concrete floors. Their small wheels and low ground clearance make them unsuitable for the uneven surfaces found in outdoor yards. For indoor-outdoor versatility, an articulated forklift is a better choice.
How much space can I save by switching to narrow aisle forklifts?
Switching from standard 12-foot to 6-foot narrow aisles can increase your storage capacity by 40% to 60%. Therefore, you would be able to fit more stock in your existing warehouse building without having to shell out for a new warehouse.
Are electric narrow aisle forklifts better than LPG models?
Electric is the go-to choice for any indoor warehouse. It is well known that electric forklifts do not emit gases, work silently, and have a lower total cost of ownership (TCO) being due to less wear and tear as well as no fuel.
What is the minimum aisle width for a reach truck?
A reach truck normally requires a minimum aisle width of 8.5-9.5 feet, depending on the pallet sizing. In case your aisles are narrower than 8 feet, turret or articulated models will be your options.
Do narrow aisle forklifts require special operator training?
Training is a must. Because narrow aisle forklifts operate in tight spaces and are typically used at high elevations, the OSH recommend operator certification and training. An operator needs to be proficient in handling particular equipment mechanisms such as reach or swing of an articulated forklift.
Which narrow aisle forklift has the highest lift capacity?
Reach trucks generally top in capacity among different types of narrow aisle forklifts. Some of the models are capable of handling up to 5,500 lbs. However, with turret trucks specializing more in lift height, certain models can go over the 60 feet mark.
Conclusion: Finding Your Perfect Fit with Narrow Aisle Forklift
Your warehouse can be made more efficient if you choose the right narrow aisle forklift. At American Forklifts, we have a full suite of our solutions featuring the rugged reliability of reach truck BR18SP-7 Plus, and high-efficiency order pickers.
The right tech is an investment in your future square footage and profitability, not just a purchase of a machine.
If you want to free up some almost-hidden space in your warehouse, browse our full stock at americanforklifts.org or get in touch with one of our experts who will guide you to a solution that fits your needs.
